16x36x4 Air Filters Actual Size Explained
TL;DR
A filter labeled 16x36x4 measures 15.5 by 35.5 by 3.75 inches. The label is a nominal size rounded up to the nearest half inch, and the real dimensions run smaller so the frame slides into its rack without binding. Order by the nominal number on your old filter, then confirm the actual dimensions before checkout. The gap that costs performance is not the designed clearance. It is the slack between a mismatched filter and its rack.
Key Takeaways
- Every dimension on a 16x36x4 label rounds up. The frame is a half inch narrower and shorter than its name, and a quarter inch shallower.
- Nominal size is the number you order by. Actual size is what a tape measure reads.
- Published depth is not uniform across brands in the four-inch class. Listings under the same label show 3.75 inches and 3.63 inches.
- The EPA advises fitting a filter snugly so air does not leak around it, and warns against bending or crushing a filter to make it fit.
- A wrong-size filter usually seats normally. Loose fit, not refusal to fit, is the symptom to look for.
What Is the Actual Size of a 16x36x4 Air Filter?

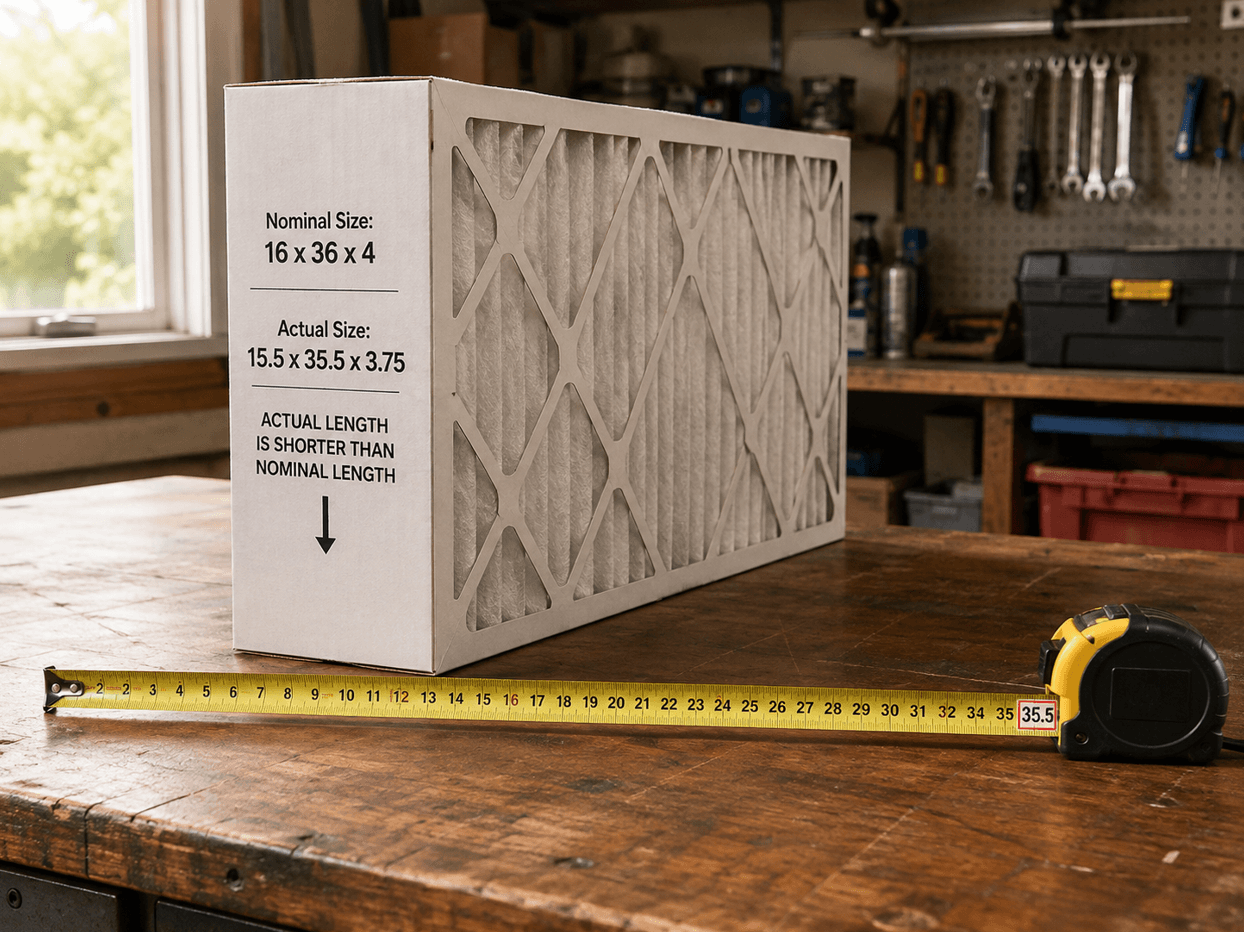

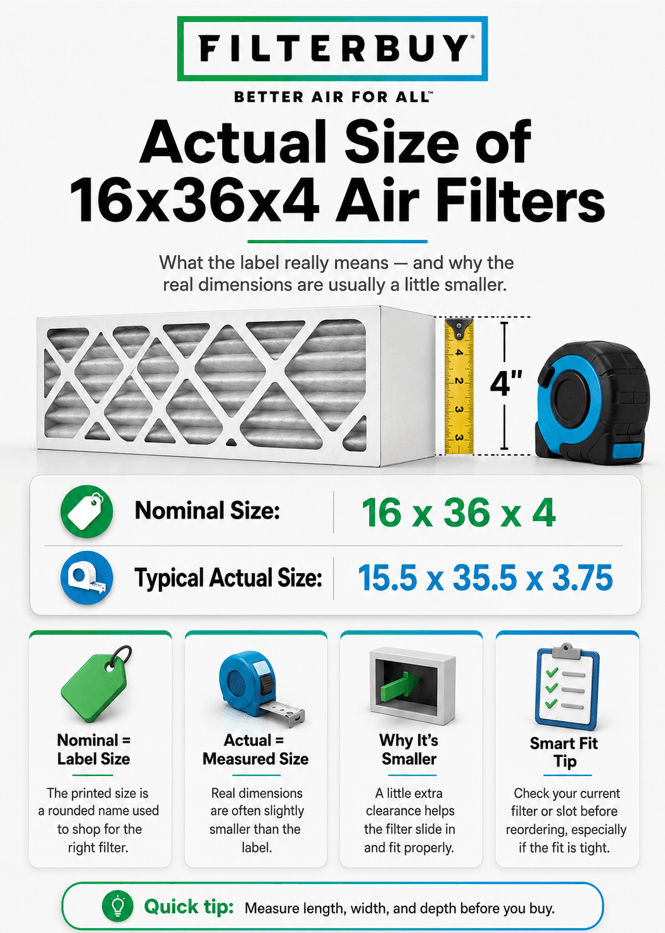

The actual size of a 16x36x4 air filter is 15.5 by 35.5 by 3.75 inches. Width and length each lose a half inch against the label, and depth loses a quarter inch. Those reductions are intended manufacturing clearance rather than a defect or a shorted product.
The label states a nominal size, rounded to the nearest whole or half inch. Manufacturers build under that number so a rigid frame enters a fixed track without force, and the rounded label works as a shared ordering size across brands. Filterbuy, a United States manufacturer of pleated HVAC air filters that publishes measured dimensions alongside every nominal size it sells, lists the 16x36x4 actual size as 15.5x35.5x3.75 inches in MERV 8, 11, and 13.
Why Do Two 16x36x4 Filters Have Different Depths?
Published depth varies by brand under an identical nominal label. Current 16x36x4 listings show 3.75 inches at some sellers and 3.63 at others. An eighth of an inch is irrelevant in a one-inch slot with a retaining clip, but a four-inch cabinet is a fixed box with a gasketed door meant to close against a full pack. Read the published depth every time you order a four-inch filter, including reorders from a different seller.
Why Does a Wrong-Size 16x36x4 Still Slide Into the Rack?
A mismatched filter still enters the track and stands upright because filters are cut under their nominal size while racks are built to it. A nominal 16x36x4 measures 15.5 by 35.5 inches. Drop it into a rack built for a 17x36 opening, and it sits roughly an inch and a half short across the width, yet nothing about the installation looks wrong.
A gap under a quarter inch already costs roughly two MERV levels, and a large gap models out at 25 percent bypass. The filter sets the ceiling on filtration. The rack decides how much of it you get.
Does the Gap Around a 16x36x4 Filter Matter After Duct Repair?
Yes. A quarter inch of designed clearance is normal, and a gap you can slip a finger into is not. A 16x36x4 air filter measures 15.5 by 35.5 by 3.75 inches, a figure Filterbuy publishes alongside the nominal size on its product page, leaving roughly a quarter inch of intended clearance in a matched rack. The EPA advises that a filter should fit snugly so air does not leak around it, and should not be bent or crushed to fit. If you have just paid for proper duct sealing, a loose filter reopens a leak at the one point nobody inspects.
How Can I Tell If My 16x36x4 Filter Is Bypassing Air?
Check four places with the blower running: the frame edges, the sound at startup, the track, and the clean side of the media. Two or more signs mean air is going around your filter.
- Feel the perimeter. You should feel the cabinet pulling, not air moving past your fingers at one specific point.
- Listen at startup. A whistle or flutter is high-velocity air squeezing through a narrow opening. A seated filter is quiet.
- Read the track. Where air slips by, it leaves a fine dust line, and a fan-shaped smudge downstream of a corner maps the leak.
- Check the downstream face. The blower side should be visibly cleaner than the return side. Two dirty faces mean unfiltered air reached the far side of the media.
One point specific to this size: at 36 inches, the long side of the frame is a substantial unsupported span, and filter collapse is a documented failure mode. A bowed frame opens a gap on a filter whose dimensions were correct the day it went in, so check that the frame is still square when you pull it.
What Should I Do If There Is a Gap Around My Filter?
Work down this order and stop at the first option that applies. Fixing bypass out of order wastes money.
1. Confirm the nominal size by measuring the rack opening, not the old filter. 2. Order to your measured actual dimensions if the opening falls between two nominal sizes, common in older Florida homes where the return was framed to the ductwork. 3. Check the access panel gasket, because a flattened or missing one means the leak is the door. 4. Escalate to the rack if the opening is oversized for any stocked filter.
Two things not to do. Do not tape the cover shut, because a cover that does not open easily means the filter stops getting changed on schedule. Do not stack two filters to fill a deeper cabinet, because stacked frames double the resistance without doubling the sealing surface, and the seam between them becomes a new bypass path.
How Do I Measure a 16x36x4 Slot Before Ordering?
Measure the old filter first. Read the small actual dimensions on the frame edge, confirm them with a tape, then round each figure up to the nearest half inch to get the nominal size you order by.
Measure the rack opening itself only when the filter that came out was the wrong size. Note the airflow arrow before pulling the old filter, and insert the replacement with that arrow pointing toward the blower.
Which MERV Rating Works in a 16x36x4 Slot?
A four-inch cabinet carries a higher MERV rating with less airflow penalty than a one-inch slot. The EPA recommends at least MERV 13, or as high a rating as the system fan and filter slot will accommodate, and filters rated MERV 13 and above must show at least 50 percent removal efficiency on the smallest particles tested.
Particle size efficiency is measured across three size bands under AHRI Standard 680. The EPA sets the recommended level, AHRI defines the test, and manufacturers such as Filterbuy print the result on the frame. Depth is doing most of the work, which is the same reason a four-inch furnace filter performs best when the ductwork is in good shape.
"The number on the box is a shopping label, not a measurement, and the half inch between the two is the margin that decides whether the filter seals or leaks. When a homeowner tells me they upgraded the rating and nothing changed, I ask about the rack before I ask about the filter."
-Nancy Geib, writer, palm-beach-county-duct-repair.com
Essential Resources
- Actual dimensions of the 16x36x4 air filters - The measured dimensions printed alongside the ordering size, the figure to check your tape against before buying.
- High-MERV Filters, Building America Solution Center - Department of Energy guide on filter selection and pressure drop, including why deeper pleats carry a higher rating with less penalty.
- Proper Installation of Furnace and Air-Handler Filters - Covers gasketed filter racks, air gaps, and measuring the slot when the existing filter is the wrong size.
- Air Cleaning, American Lung Association - Where HVAC filters sit in a home, what upgrading the rating changes, and when to replace them.
3 Statistics Worth Knowing
- A gap under a quarter inch can cost about two MERV levels. The National Air Filtration Association reports that a 10-millimeter gap lowers a filter’s effective rating by at least two levels, turning a high-efficiency filter into a medium-efficiency one (NAFA).
- A loose filter bypasses 10 percent of airflow, and a large gap bypasses 25 percent. Lawrence Berkeley National Laboratory modeling assigns those figures to a loose-fitting slot and to a filter with a large gap, and finds that bypass largely compromises the added efficiency of a higher-rated filter (ACEEE).
- People spend as much as 90 percent of their time indoors. The Asthma and Allergy Foundation of America names filtration as one of four factors setting indoor air quality, which makes the filter one of the few household controls (AAFA).
Final Thoughts
Fit is a performance specification, not a convenience. The industry prints MERV on the box and the measured dimensions in small type on the edge, which is backwards relative to how much each one changes the air in your house. The gap worth worrying about is never the designed clearance. It is the slack nobody looked for.
Next Steps
1. Turn the system off, pull the filter, and write down the nominal number and the small-print actual dimensions. Confirm both with tape.
2. Restart the blower and check the four bypass signs above, including the dust line on the track.
3. If you find a gap, measure the rack opening too and bring both sets of numbers to whoever works on your ducts before the next filter change.
Frequently Asked Questions
Is a 16x36x4 Filter the Same as a 16x36x5?
No. Depth differs by a full inch, and a five-inch filter will not seat in a four-inch rack. Depth is the dimension most often mismatched when people order from memory.
How Often Should a 16x36x4 Filter Be Replaced?
Manufacturers typically recommend every 60 to 90 days, sooner if it looks heavily soiled. A deeper pleat pack loads more slowly than a one-inch air filter.
Can a 16x36x4 Filter Be Washed and Reused?
No. A pleated 16x36x4 is disposable. Washing collapses the pleats, and one that does not dry fully can harbor mold. Washable filters are a different product built from aluminum mesh or foam.
Should I Order by Nominal Size or Actual Size?
Order by nominal size unless the manufacturer instructs otherwise, and use the actual dimensions as a confirmation step rather than as the number you search for.
Over to You
If your filter sits loose in its rack, or the small print does not match anything you can find, leave the numbers in the comments, and I will help you work out what your slot needs.
Glossary
- Nominal size: the rounded dimension printed large on the frame and used as the ordering size.
- Actual size: the measured dimensions, commonly 15.5 by 35.5 by 3.75 inches for a nominal 16x36x4.
- Filter bypass: air traveling around a loose filter instead of through the media.
- Filter rack: the fixed track or cabinet holding the filter.
